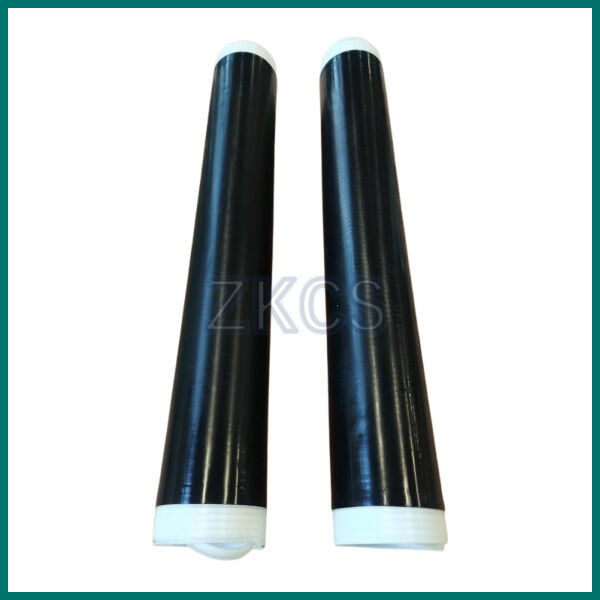

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

شهادة
الصين HENGYANG ZK INDUSTRIAL CO., LTD الشهادات
الصين HENGYANG ZK INDUSTRIAL CO., LTD الشهادات
زبون مراجعة
توصية آلة جيدة جدا

—— كارولين

آلة جميلة ، شكرا لمساعدتكم

—— ريتشارد

أنبوب الانكماش البارد EPDM الخاص بك لطيف جدًا ، وسنواصل تعاوننا

—— جيني

فريقك محترف للغاية في صناعة الانكماش البارد

—— ميشيل

ابن دردش الآن

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables
Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

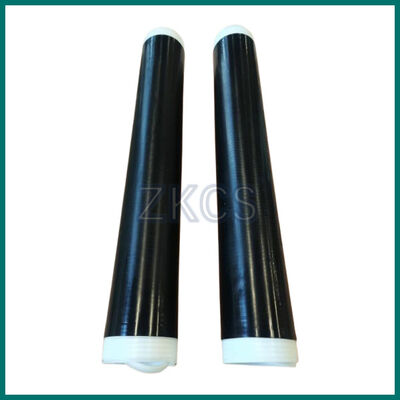

صورة كبيرة :  Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: ZKCS
إصدار الشهادات: ROHS
رقم الموديل: حسب الطلب
شروط الدفع والشحن:
الحد الأدنى لكمية: 1000 قطعة
الأسعار: قابل للتفاوض
تفاصيل التغليف: جهاز كمبيوتر شخصى 50 أو جهاز كمبيوتر شخصى 100 / كرتون
وقت التسليم: 20-30days بعد تلقي إيداع 40٪
شروط الدفع: الاعتماد المستندي، تي/تي
القدرة على العرض: 100000 قطعة/شهر

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

وصف
مادة: سيليكون لون: أسود أو رمادي
طول: حسب الطلب اسم: أنبوب تقلص البرد
طلب: حماية العزل اسم المنتج: أنبوب الانكماش البارد المطاطي لعزل الأسلاك
التعبئة: كرتون عينات مجانية: نعم
إبراز:

Long-Term Reliable Insulation,All-Weather Performance,Outdoor Cable Protection

,

All-Weather Performance

,

Outdoor Cable Protection

Product name:

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables


Description:
Equivalent 3M quality Insulation Cold Shrink Splice Sleeves are designed for single and multicore low voltage power cables. the silicone tube shrinks uniformly to form a tight, permanent seal. Its premium silicone material ensures stable performance against moisture, UV exposure, temperature changes, and environmental aging.


Features :
Ideal solution for abandoning cables temporarily or permanently
• Provides environmental sealing and mechanical protection
• Heat and special tools not required
• Simple reliable installation


Applications

  • Outdoor power cable insulation

  • Telecom and fiber optic cable sealing

  • Cable joints, terminals, and connectors

  • Utility, infrastructure, and industrial installations

Picture for your reference.

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables 0

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables 1

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables 2


Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables 3

Introduction:


Equivalent 3M quality Insulation Cold Shrink Splice Sleeve are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.


Material technical parameters:
No Items Test method Unit Test standard Remarks
1 Hardness (Shore A) GB/T 531.1-2009 Shore A 43±5
2 Tensile strength GB/T 528-2009 Mpa 8±3
3 Break elongation GB/T 528-2009 % 800±200
4 Tear strength GB/T 529-2008 kN/mm 38±5
5 Volume resistivity GB/T 2439-2001 Ω•cm ≥1013
6 dielectric strength GB/T 1695-2005 MV/m ≥18
7 dielectric Constant(50Hz) GB/T 1693-2007 / ≤8
