تفاصيل المنتج:
|
| لون: | رمادي، رمادي غامق أو أسود | يكتب: | ملحقات الكابلات |
|---|---|---|---|
| مجموعة الكابل: | 35-800 ملم² | طلب: | الجهد المنخفض |
| ضد للماء: | IP68 | مادة: | مطاط السيليكون |
| إبراز: | Tool-Free Installation,IP68 Waterproof,Anti-Tracking & UV Resistant,IP68 Waterproof,Anti-Tracking & UV Resistant |
||
3 Core Selling Points:
Pneumatic expansion for tool-free, fast installation
Broad compatibility with 35–800mm² 12/20kV cables
Superior insulation & weather resistance for durable performance
| Voltage | Model | Suitable cable section area(mm²) | Cable core insulation OD(mm²) |
|
For 12/20KV 3cores indoor/outdoor terminators (N/W) and middle connector(J) |
LSN/W/J-3/1 | 35~70 | 19.3~22.1 |
| LSN/W/J-3/2 | 95~185 | 23.7~28.4 | |
| LSN/W/J-3/3 | 240~400 | 30.7~35.6 | |
| LSN/W/J-3/4 | 500~800 |
| Item | Specification |
|---|---|
| Product Name | 3-Finger Cold Shrink Breakout Boot |
| Material | Silicone Rubber |
| Color | Grey Black |
| Type | Cable Accessories |
| Application | 12/20kV Medium Voltage Cables |
| Fabrication Machine | Pneumatic Expanding Machine |
| Advantage | IP68 Waterproof, Tool-Free Installation |
| Highlight | 3-Finger Design, Low Temp Resistant, Anti-Tracking |
| Cable Range | 35–800mm² |
FAQ:

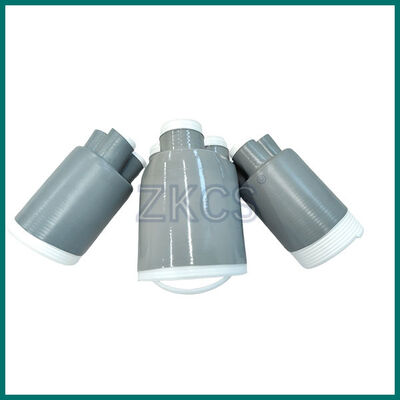

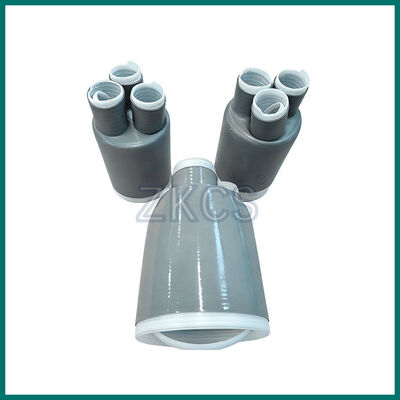

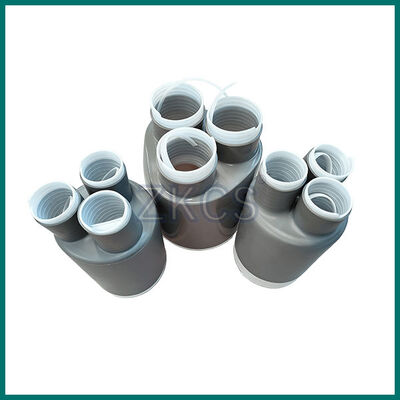

Product picture for your reference
